Photon+jet z-vertex distributions

(1)Dijets from the jet trees with an associated gamma to one of the jets from the gamma  trees (ConeJets5 branch is used in this study)

(2) Photon and jet are back to back i.e  [cos(Φγ – Φjet)]<-0.8

(3) Detector eta of the away side jet : ΙηjetΙ < 0.8

(4) Detector eta of photon candidate : 1.08<η<2.0

(5) pT of photon > 7 GeV

(6) pT of away side jet > 5 GeV

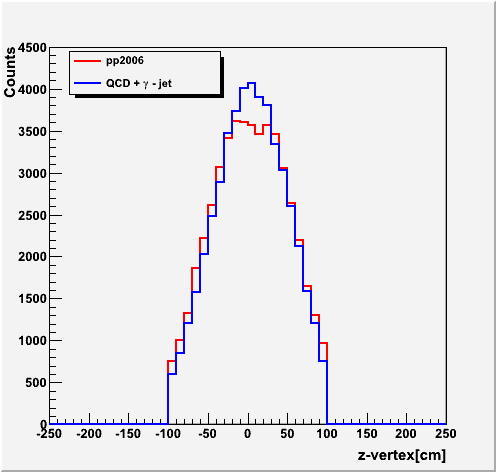

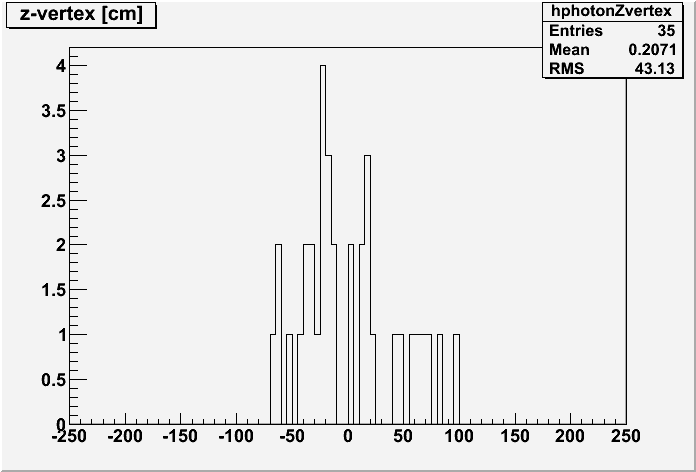

Figure 1 : z-vertex distribution

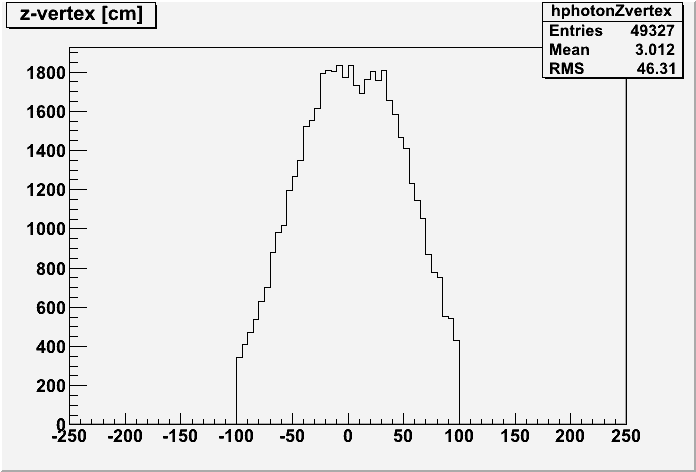

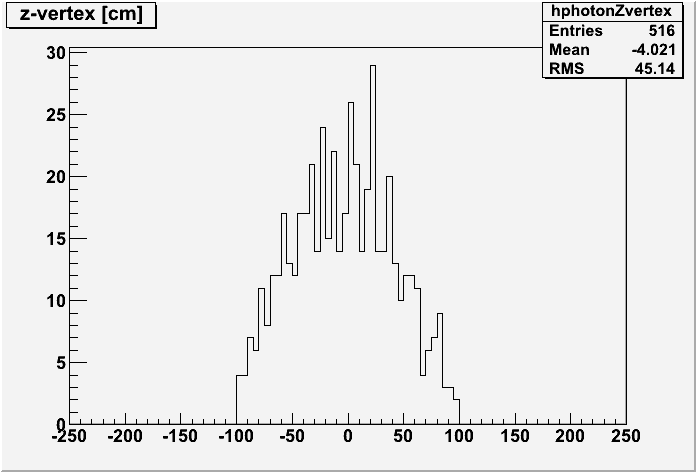

Figure 2: z-vertex distibution (pp2006)

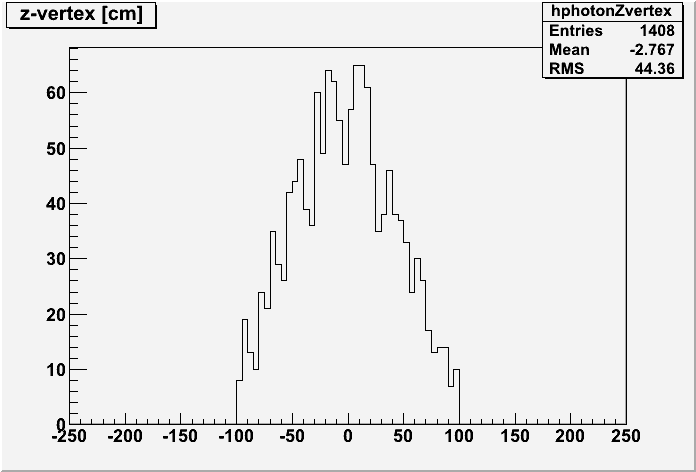

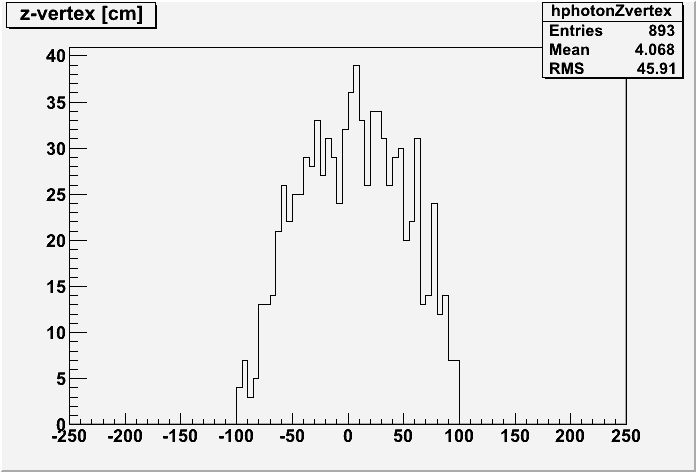

Figure 3 : z vertex distribution for different partonic QCD bins (MC)

Left: 4-6 GeV, Right: 6-9 GeV

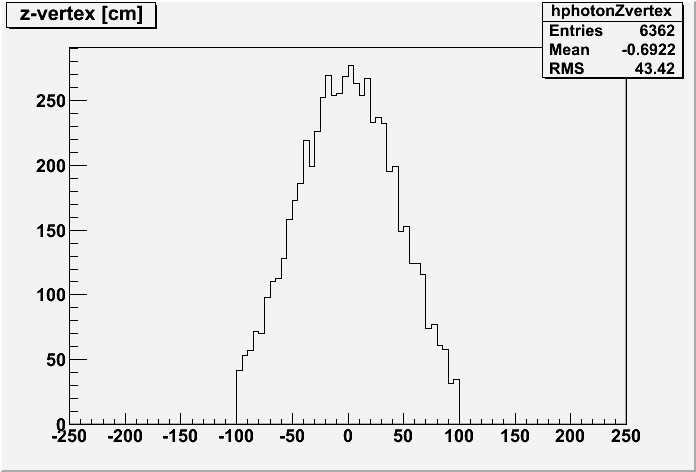

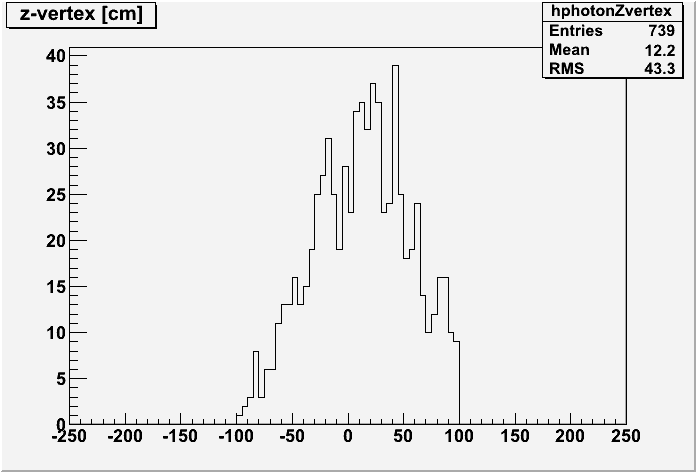

Figure 4 : z vertex distribution for different partonic QCD bins (MC)

Left: 9-15 GeV, Right: 15-35 GeV

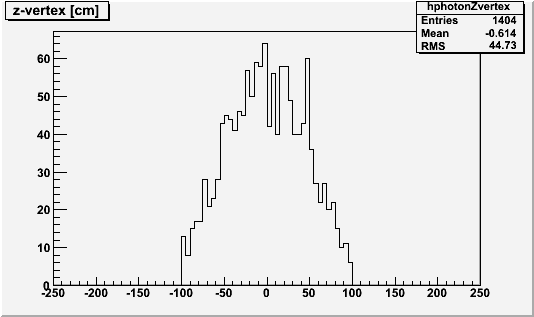

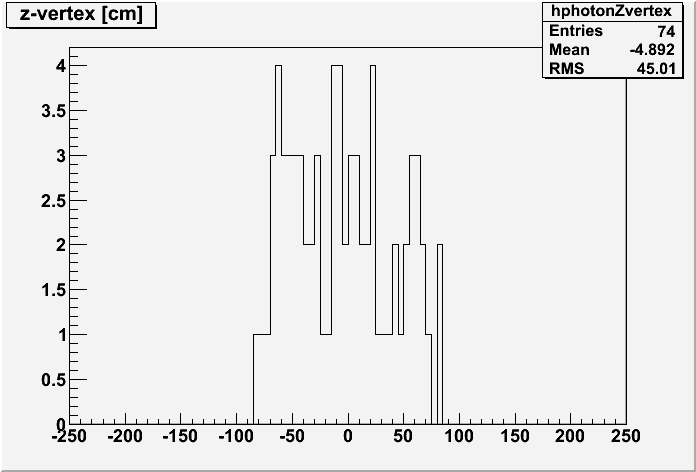

Figure 5 : z vertex distribution for different partonic prompt photon bins (MC)

Left: 2-3 GeV, Right: 3-4 GeV

Figure 6 : z vertex distribution for different partonic prompt photon bins (MC)

Left: 4-6 GeV, Right: 6-9 GeV

Figure 7 : z vertex distribution for different partonic prompt photon bins (MC)

Left: 9-15 GeV, Right: 15-35 GeV
