Sector dependent shower shape distributions

(I)Sectors 1, 4, 7 and 10 have the same structure of V, Space and U.

(II) Sectors 2, 5, 8 and 11 have the same structure of U, V and Space.

(III) Sectors 3, 6, 9 and 12 have the same structure of Space, U and V.

Again, these three curves have been normalized w.r.t center strip.

Green is QCD background.

Black is data pp2006.

Red is photon.

(I)

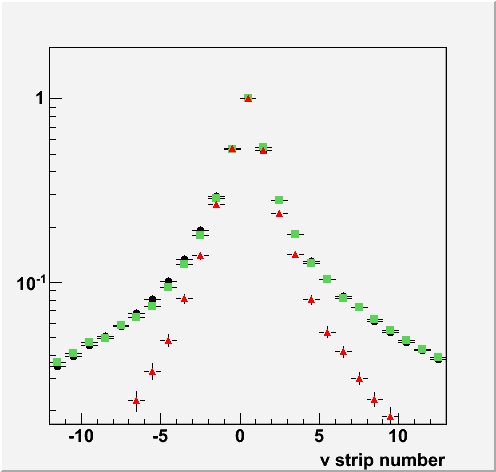

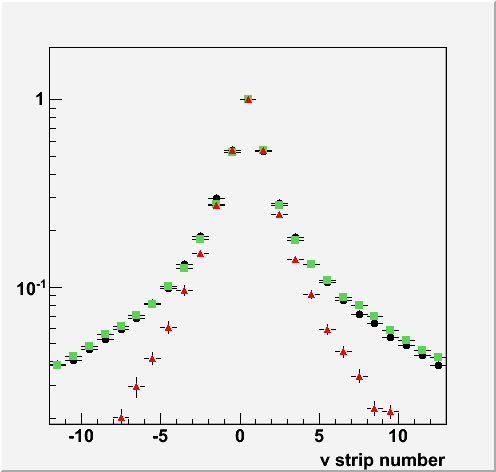

Sector1 (v plane)                                                 Sector 4 (v plane)

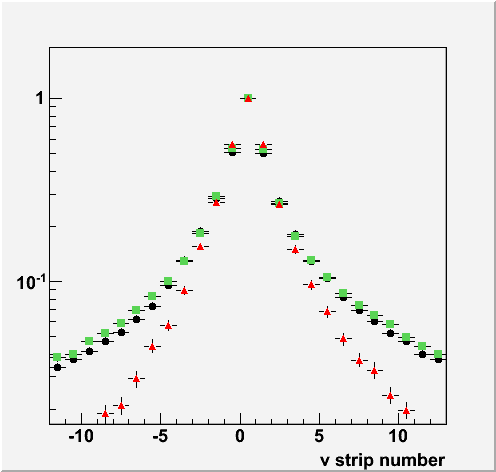

Sector 7(v plane)                                              Sector 10(v plane)

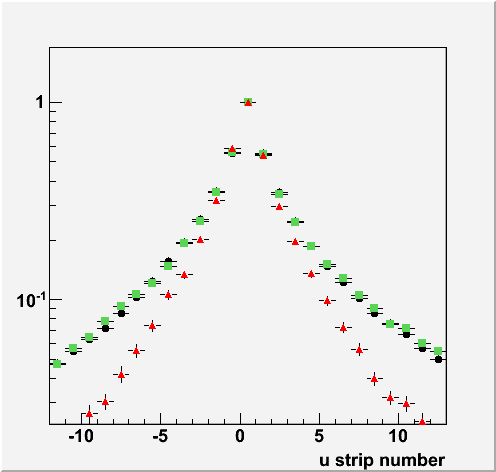

Sector 1(u plane)                                              Sector 4(u plane)

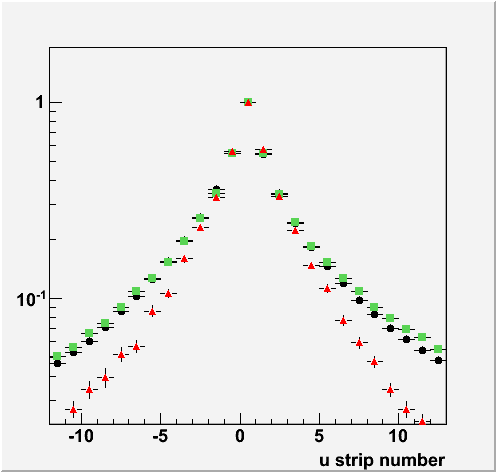

Sector 7(u plane)                                              Sector 10(u plane)

(II)

Sector2 (v plane)                                              Sector5 (v plane)

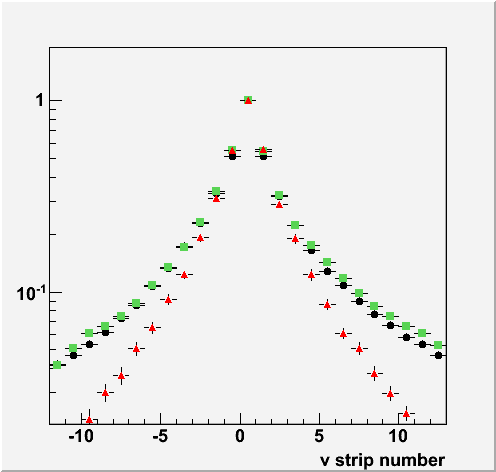

Sector 8(v plane)                                              Sector 11(v plane)

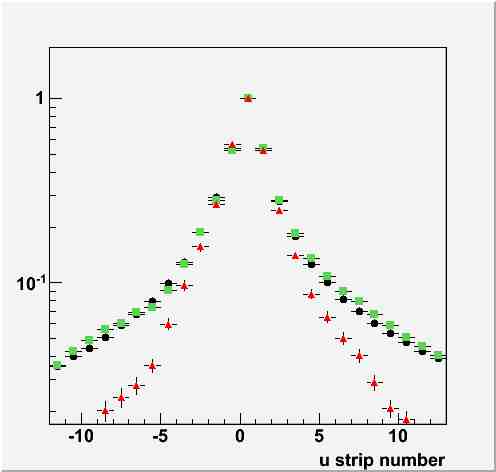

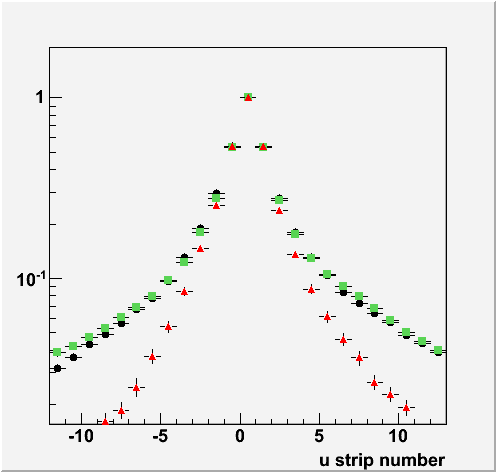

Sector 2 (u plane)                                             Sector 5 (u plane)

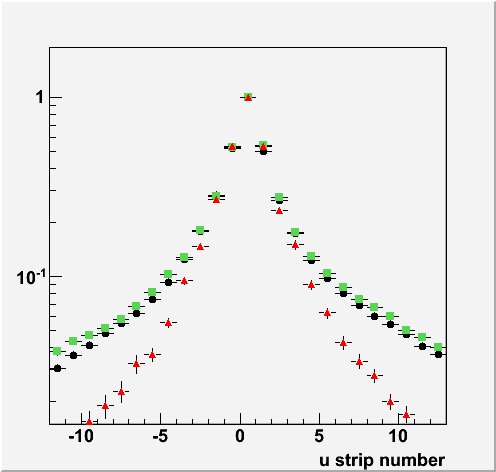

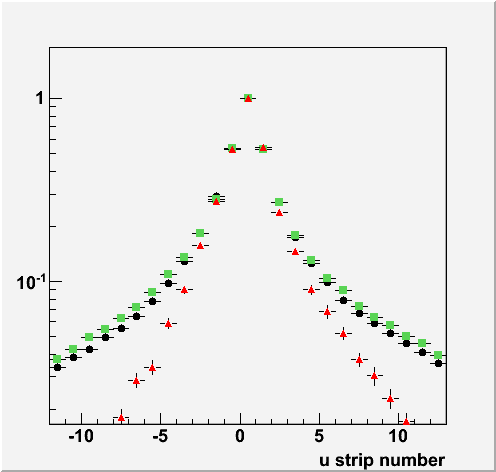

Sector 8(u plane)                                            Sector 11 (u plane)

(III)

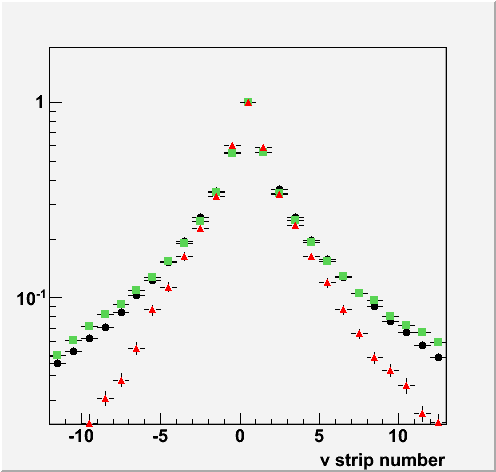

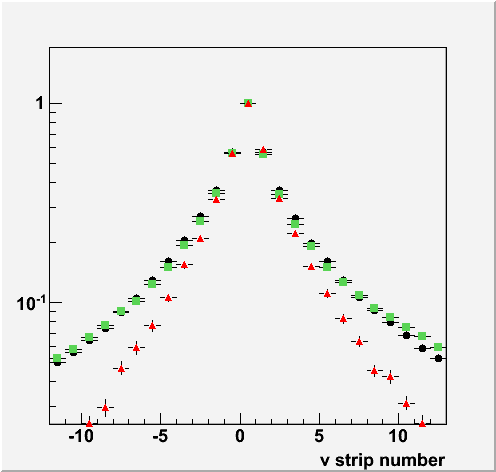

Sector 3(v plane)                                               Sector 6(v plane)

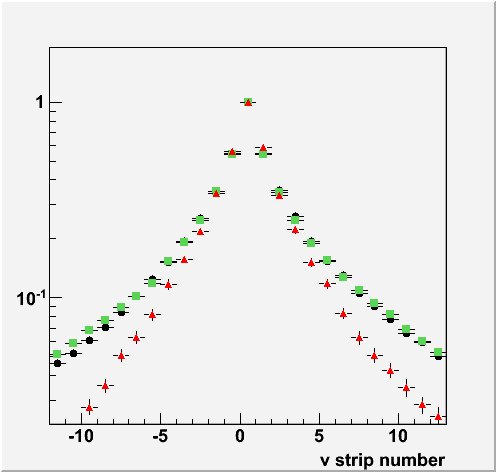

Sector 9(v plane)                                              Sector 12(v plane)

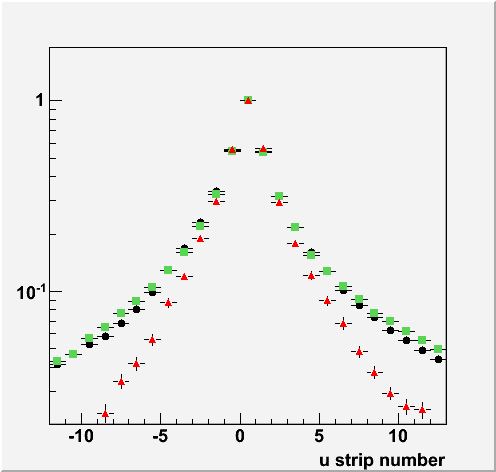

Sector 3(u plane)                                             Sector 6(u plane)

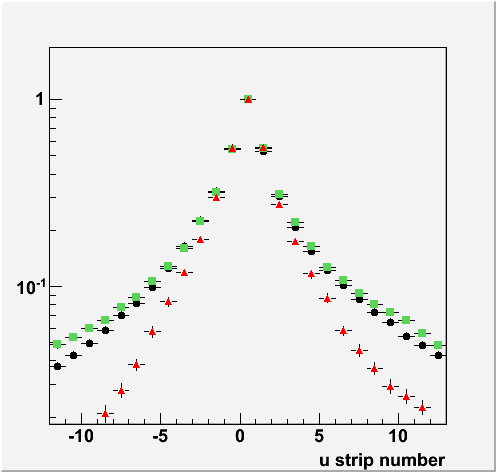

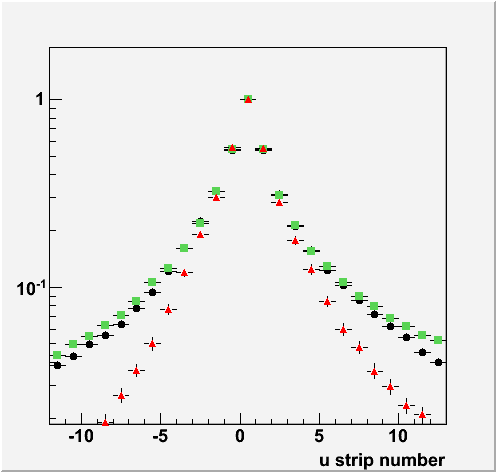

Sector 9 (u plane)                                            Sector 12(u plane)
