Sector dependent shower shapes sorted into different preshower bins - Triple Gaussian Fits (Version 3)

Updated on Sun, 2011-07-31 19:12. Originally created by sdhamija on 2011-07-31 19:12.

Transverse Shower Profile Distributions

Old Fitting Function

Fitting function "[0]*(exp ( -0.5*((x-[1])/[2])**2 )+[3]*exp ( -0.5*((x-[4])/[5])**2 )+[6]*exp ( - 0.5*((x[7])/([8]*(1.0+[9]*(x-[7]))))**2 )"

New Fitting Function

Fitting function "[0]*(exp ( -0.5*((x-[1])/[2])**2 )+[3]*exp ( -0.5*((x-[4])/[5])**2 )+[6]*exp ( -0.5*((x[7])/([8]+[9]*(x-[7])))**2 )"

To see the values of all the parameters for these different fits, please open the attached file shower_mod_new.txt

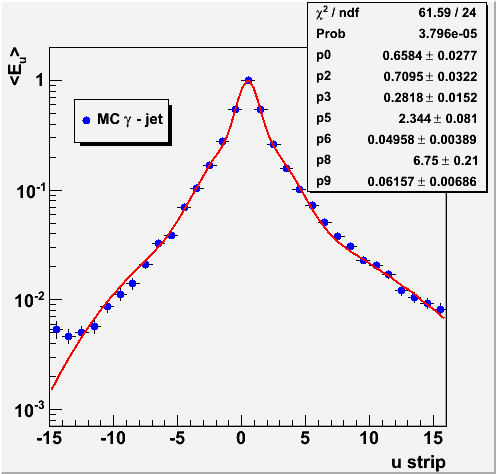

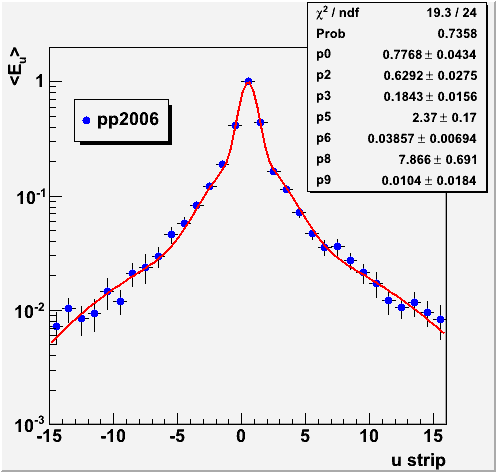

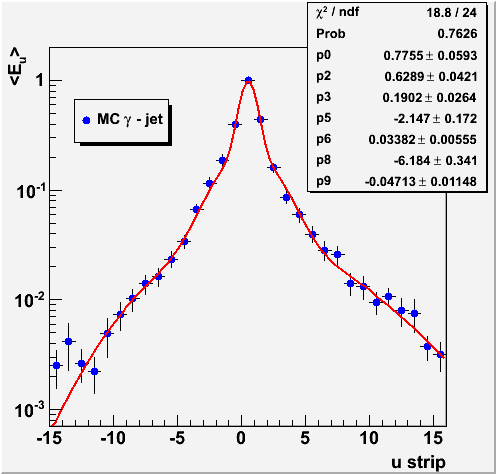

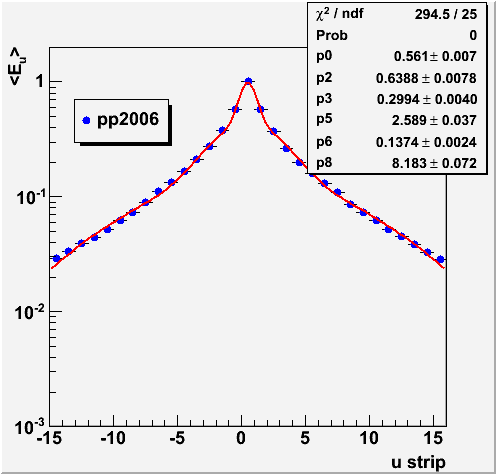

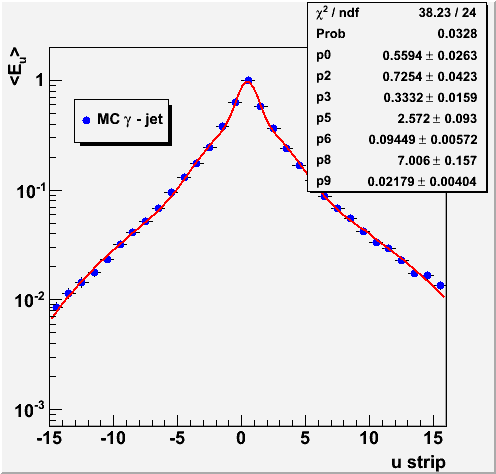

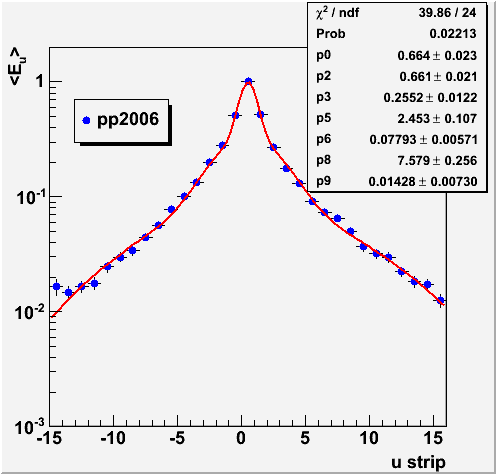

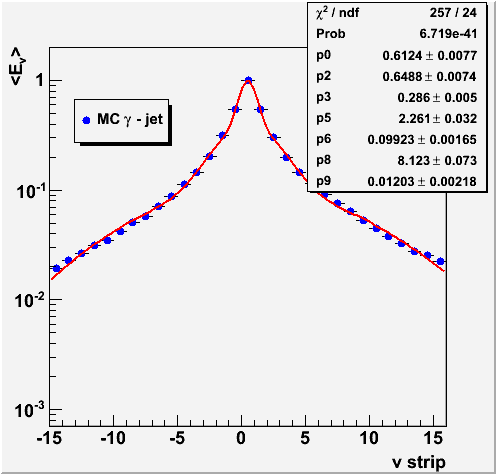

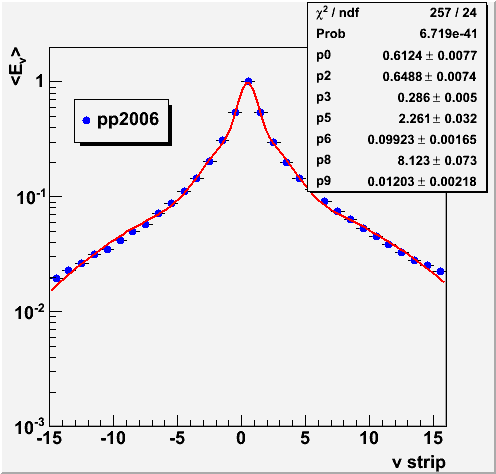

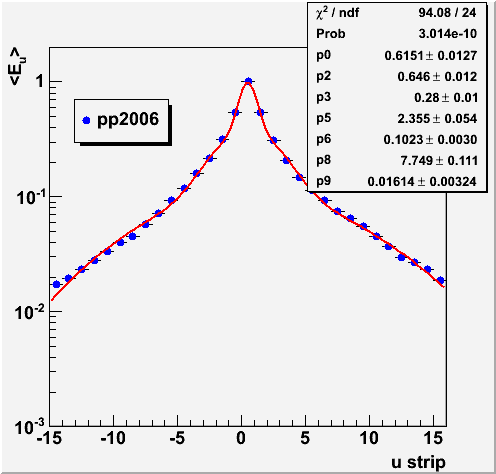

(I) Sum of Sectors 1, 4, 7 & 10 (U Plane)

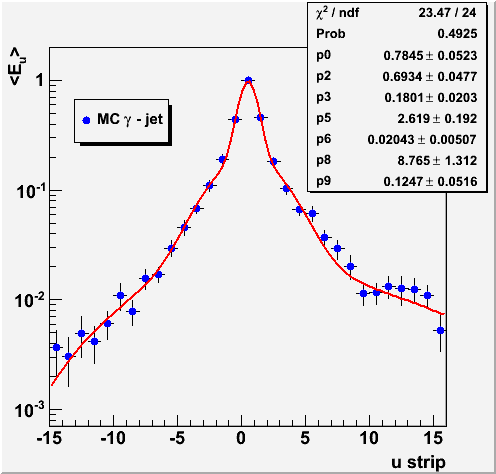

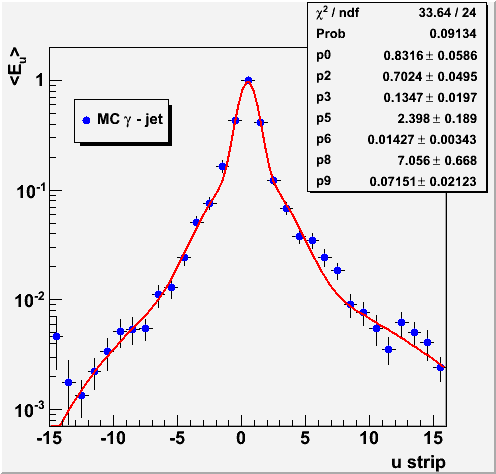

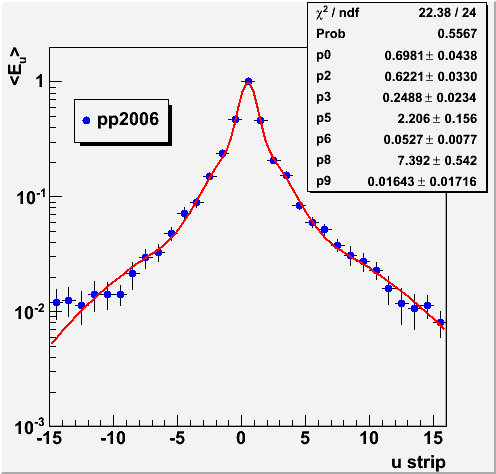

(a) Pre1 =0, Pre2 =0

(b) Pre1 =0, Pre2 >0

(c) 0<Pre1<4MeV

d) Pre1>=4MeV

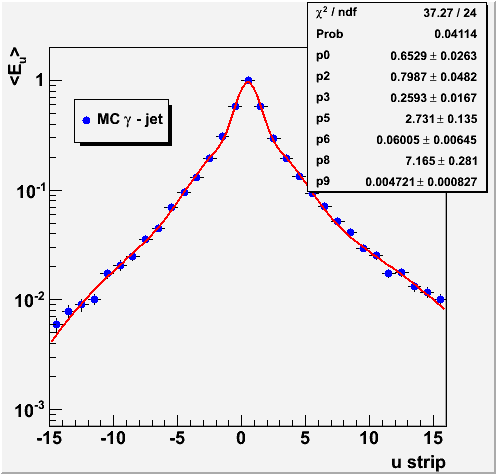

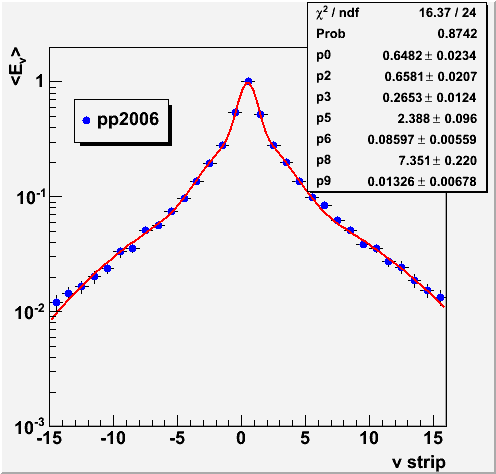

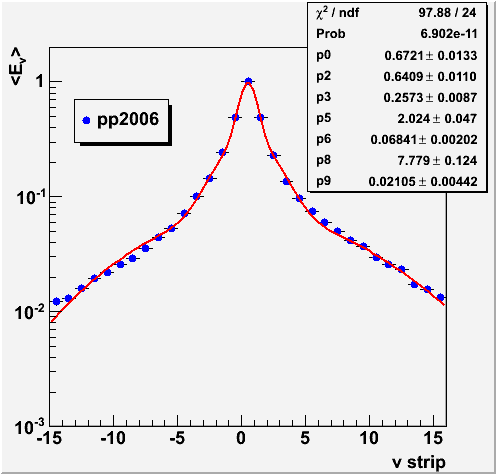

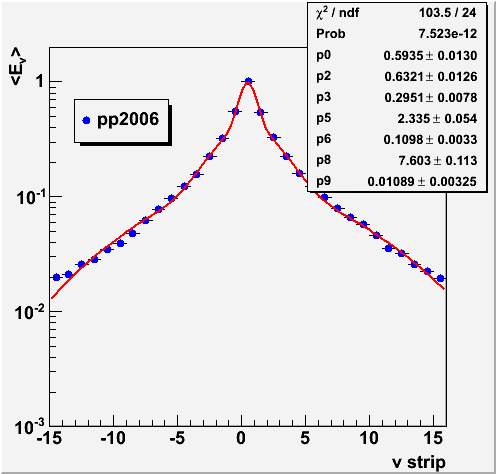

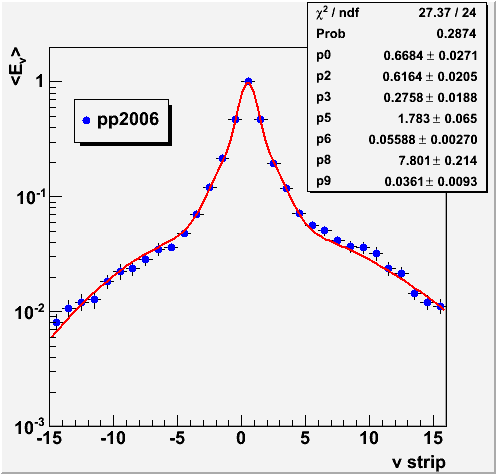

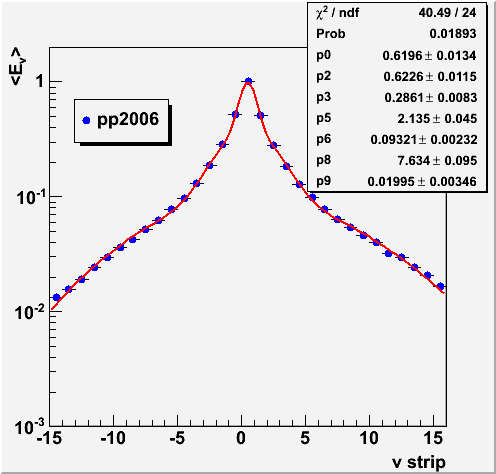

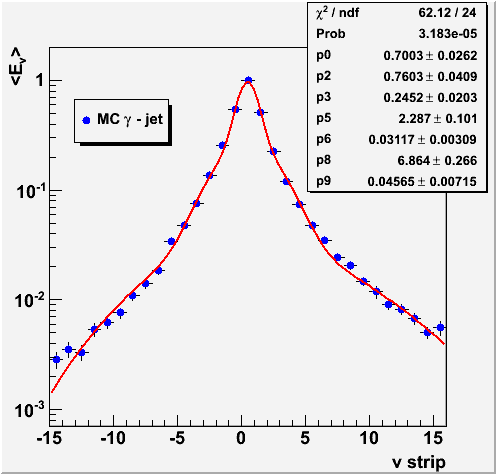

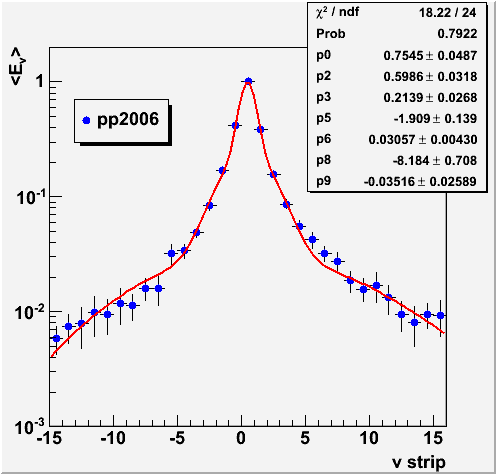

(I) Sum of Sectors 1, 4, 7 & 10 (V Plane)

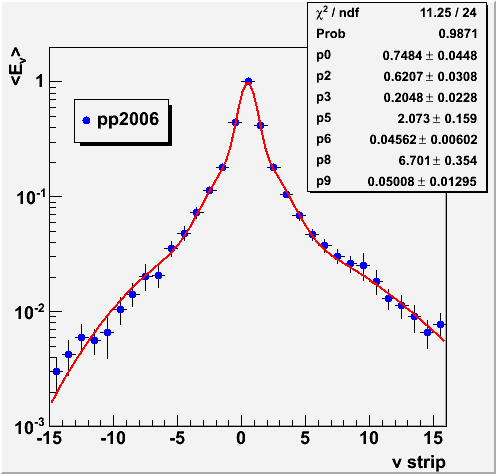

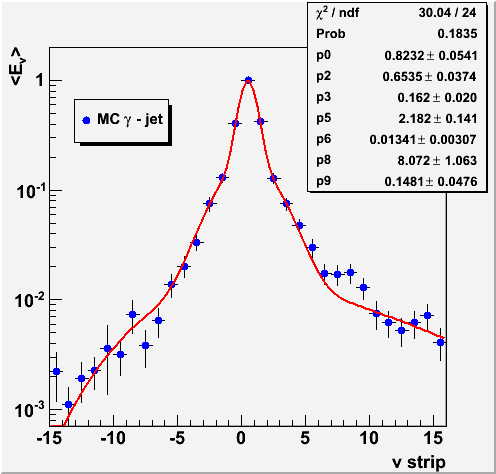

(a) Pre1 =0, Pre2 =0

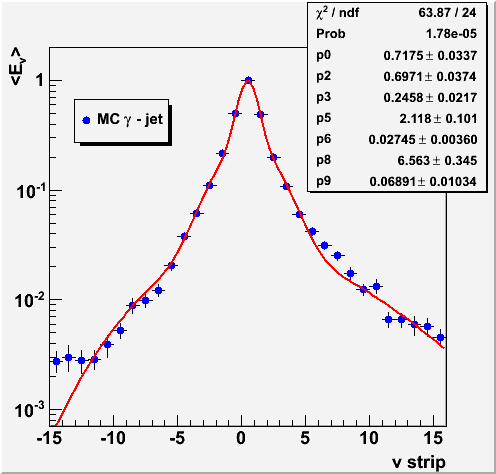

b) Pre1 =0, Pre2 >0

c) 0<Pre1<4MeV

(d) Pre1>=4MeV

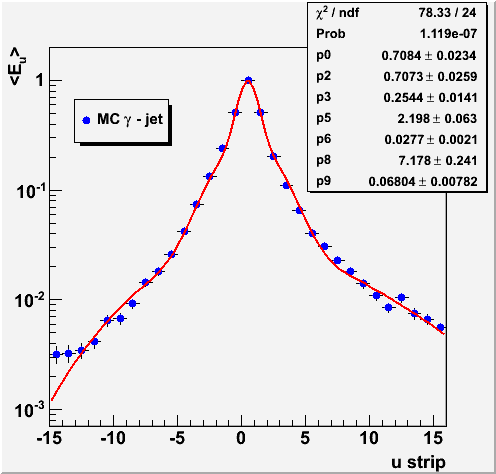

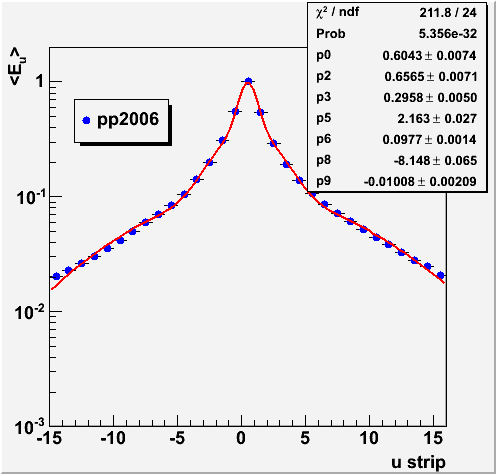

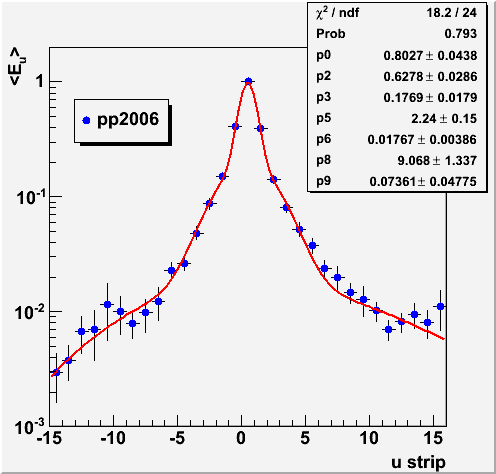

II) Sum of Sectors 2, 5, 8 & 11 (U Plane)

(a) Pre1 =0, Pre2 =0

b) Pre1 =0, Pre2 >0

c) 0<Pre1 < 4MeV

(d) Pre1 >= 4MeV

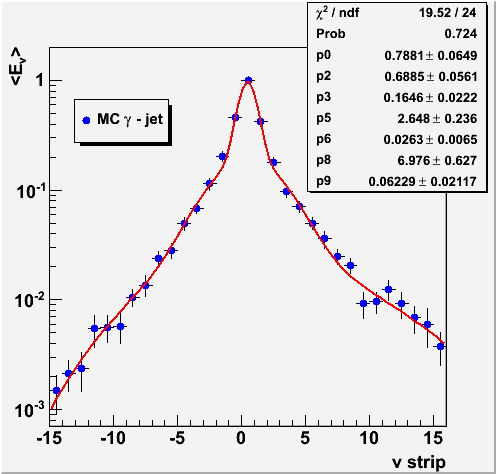

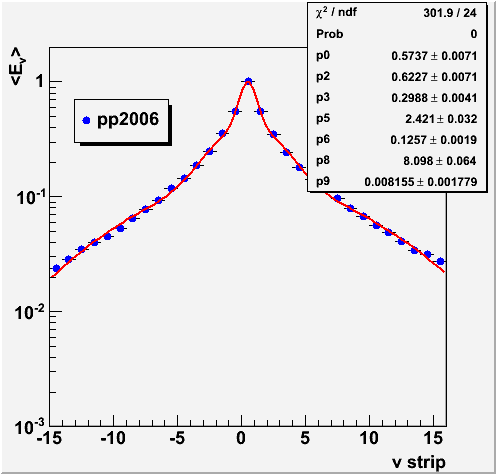

(II) Sum of Sectors 2, 5, 8 & 11 (V Plane)

(a) Pre1 =0, Pre2 =0

(b) Pre1 =0, Pre2 >0

(c) 0<Pre1<=4MeV

(d) Pre1 >= 4MeV

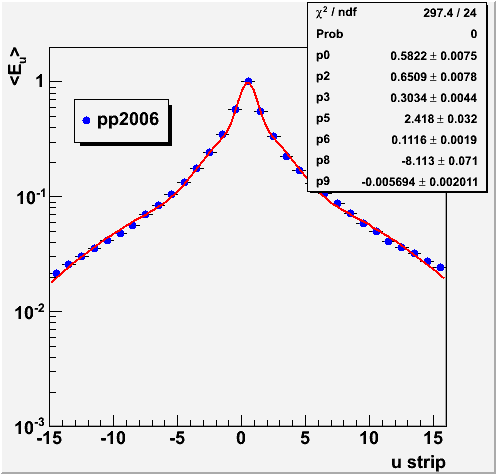

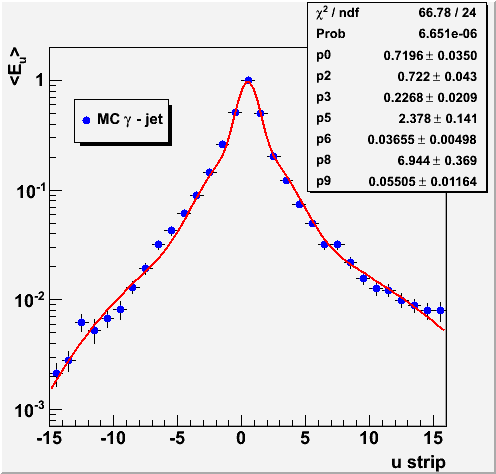

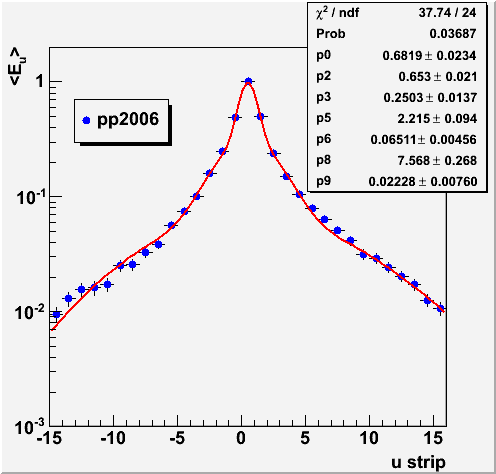

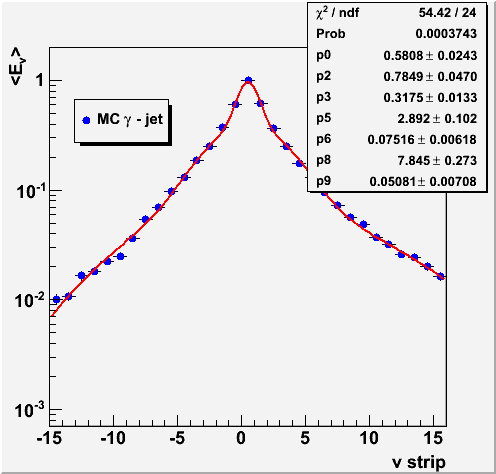

(III) Sum of Sectors 3, 6, 9 & 12 (U Plane)

(a) Pre1 =0, Pre2 =0



(b) Pre1 =0, Pre2 >0



c) 0<Pre1<4MeV



d) Pre1 >= 4MeV

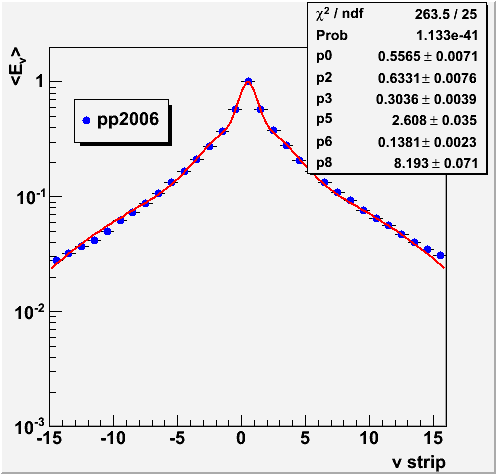

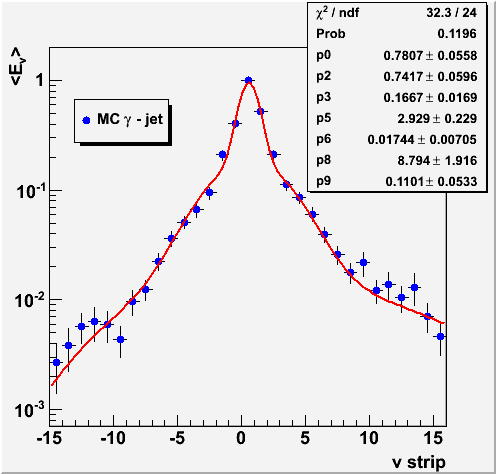

(III) Sum of Sectors 3, 6, 9 & 12 (V Plane)

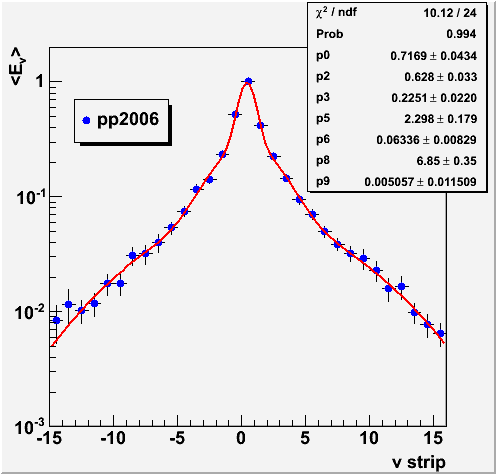

(a) Pre1 =0, Pre2 =0



(b) Pre1 =0, Pre2 >0



c) 0<Pre1 < 4MeV



(d) Pre1 >= 4MeV
