Cluster energy ratios - Data vs MC
Event Selection
These distributions are based on the following fiducial cuts :
(1)Dijets from the jet trees with an associated gamma to one of the jets from the gamma
trees (ConeJets5 branch is used in this study)
(2) Photon and jet are back to back i.e [cos(Φγ – Φjet)]<-0.8
(3) Detector eta of the away side jet : ΙηjetΙ < 0.8
(4) pT of photon > 7 GeV
(5) pT of away side jet > 5 GeV
Figure 1: Cluster energy ratio: 2x1/2x2

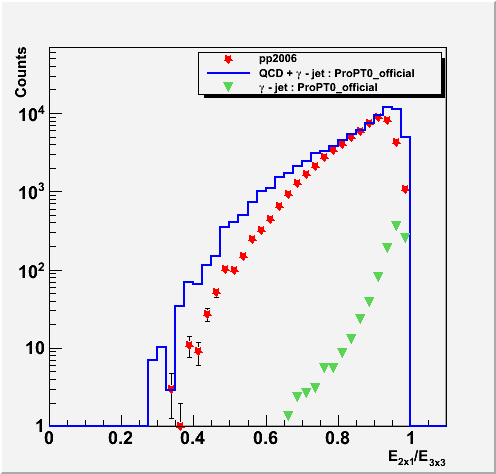

Figure 2: Cluster energy ratio: 2x1/3x3

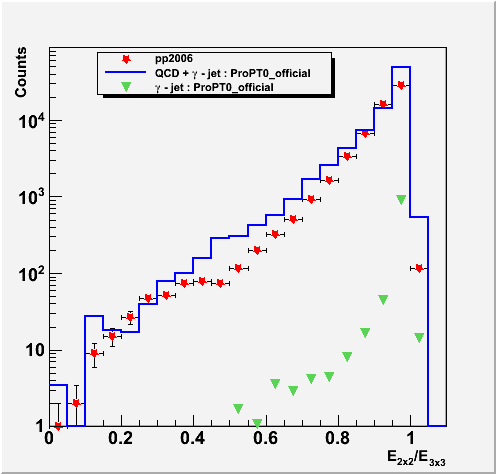

Figure 3: Cluster energy ratio: 2x2/3x3

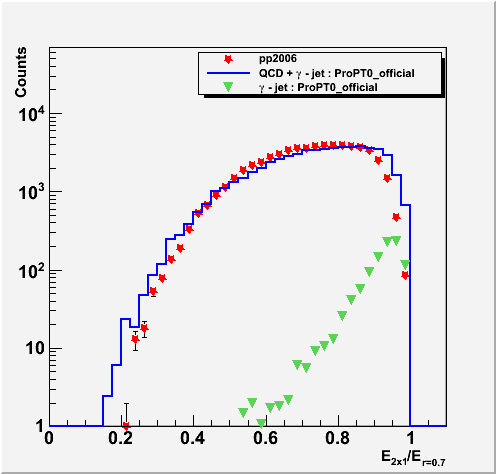

Figure 4: Cluster energy ratio: 2x1/E(R=0.7)

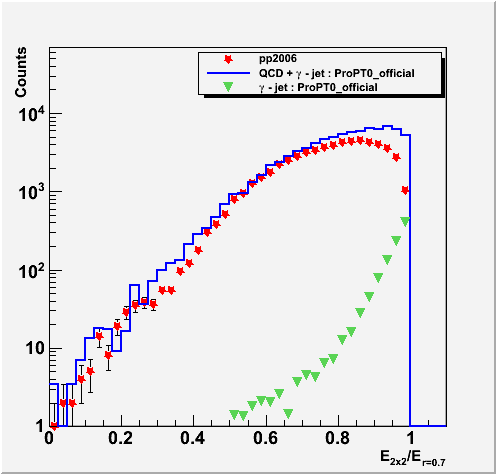

Figure 5: Cluster energy ratio: 2x2/E(R=0.7)

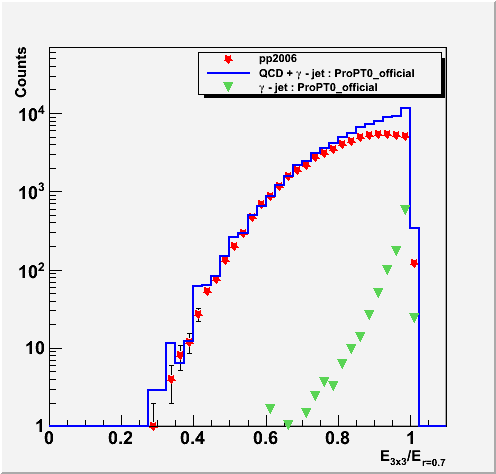

Figure 6: Cluster energy ratio: 3x3/E(R=0.7)
